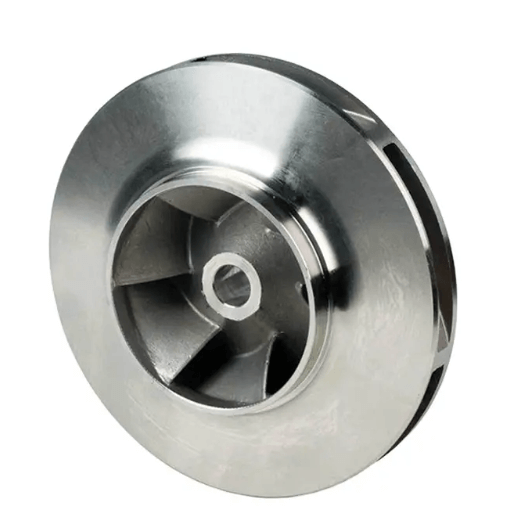

Different casting processes produce varying levels of casting tolerances, which can significantly impact the overall quality of the product. Casting tolerances refer to the allowable deviation from the desired dimensions and specifications of a cast part. These tolerances can be affected by factors such as the type of casting process used, the material being cast, and the complexity of the part.

Investment casting, for example, is known for producing high-precision parts with tight tolerances. This process involves creating a wax model of the desired part, which is then coated in ceramic and heated to create a mold. The wax is melted away, and the mold is filled with molten metal, resulting in a highly accurate final product. On the other hand, sand casting is a more cost-effective process that is often used for larger parts with less stringent tolerances. Sand casting involves creating a mold from a mixture of sand and a bonding agent, which is then filled with molten metal. This process can result in a rougher finish and less precise dimensions, but it is often a more practical option for larger or less complex parts.

Understanding the different casting processes and their associated tolerances is crucial for ensuring that the final product meets the required specifications. By selecting the appropriate casting process for a given part and understanding the tolerances that can be achieved, manufacturers can produce high-quality parts that meet the needs of their customers.

Casting Tolerances Overview

What are Casting Tolerances?

Casting tolerances are the acceptable range of variation in the dimensions and properties of a cast part. These tolerances are determined by the casting process used and the requirements of the final product. The goal is to produce parts that meet the desired specifications while minimizing the amount of material used and the cost of production.

Why are Casting Tolerances Important?

Casting tolerances are crucial for ensuring the quality and functionality of the final product. Parts that do not meet the required tolerances may not fit together properly, may not function as intended, or may be weaker and more prone to failure. Tolerances also affect the cost of production, as tighter tolerances require more precise and expensive casting methods.

Different casting processes have different capabilities for achieving tight tolerances. For example, investment casting can achieve tolerances as tight as ±0.005 inches, while sand casting may only be able to achieve tolerances of ±0.125 inches or more. It is important to choose the right casting process for the desired tolerances and requirements of the final product.

In summary, casting tolerances are a critical aspect of the casting process that can affect the quality, functionality, and cost of production of a final product. Choosing the right casting process and tolerances is essential for producing high-quality, cost-effective parts.

Casting Processes and Tolerances

Sand Casting

Sand casting is a widely used casting process that involves the use of sand molds. This process is suitable for producing large and complex parts. Sand casting tolerances are typically ±0.5% of the dimension, with a minimum of ±0.125 inches.

Investment Casting

Investment casting is a process that involves the use of wax patterns to create molds. This process is suitable for producing parts with complex geometries and intricate details. Investment casting tolerances are typically ±0.005 inches per inch, with a minimum of ±0.010 inches.

Die Casting

Die casting is a process that involves the use of metal molds to create parts. This process is suitable for producing high-volume parts with tight tolerances. Die casting tolerances are typically ±0.003 inches per inch, with a minimum of ±0.005 inches.

Permanent Mold Casting

Permanent mold casting is a process that involves the use of reusable metal molds to create parts. This process is suitable for producing high-volume parts with good dimensional accuracy. Permanent mold casting tolerances are typically ±0.005 inches per inch, with a minimum of ±0.010 inches.

Lost Foam Casting

Lost foam casting is a process that involves the use of foam patterns to create molds. This process is suitable for producing parts with complex geometries and intricate details. Lost foam casting tolerances are typically ±0.010 inches per inch, with a minimum of ±0.020 inches.

Overall, casting processes have varying tolerances depending on the specific process and the part being produced. It is important to consider the tolerances required for the part when selecting a casting process.

Factors Affecting Casting Tolerances

Material Type

The material used for casting plays a crucial role in determining the tolerances that can be achieved. Different materials have different shrinkage rates and thermal properties, which affect the final dimensions of the casting. For example, aluminum has a higher shrinkage rate than steel, which means that tighter tolerances can be achieved with steel castings. Similarly, materials with higher thermal conductivity, such as copper, can be more challenging to cast with tight tolerances due to the increased risk of thermal distortion.

Casting Design

The design of the casting also affects the tolerances that can be achieved. The complexity of the design and the number of features included can impact the accuracy of the final product. Castings with more intricate features, such as thin walls, sharp corners, and undercuts, are more challenging to produce with tight tolerances. Additionally, the location of the features on the casting can affect the tolerances. Features located closer to the gating system tend to have looser tolerances due to the higher likelihood of turbulence and metal velocity variations.

Casting Size

The size of the casting is another factor that affects the tolerances that can be achieved. Larger castings tend to have looser tolerances due to the increased likelihood of thermal distortion and shrinkage. Smaller castings, on the other hand, can be more challenging to produce with tight tolerances due to the increased difficulty in controlling the flow of metal during the casting process.

Casting Complexity

The complexity of the casting process itself can also affect the tolerances that can be achieved. Different casting processes, such as sand casting, investment casting, and die casting, have different capabilities and limitations when it comes to achieving tight tolerances. For example, investment casting can produce more intricate and complex shapes with tighter tolerances than sand casting. Additionally, the quality of the mold or pattern used in the casting process can impact the tolerances. Molds or patterns with higher levels of detail and precision can produce castings with tighter tolerances.

In conclusion, achieving tight tolerances in casting depends on several factors, including the material type, casting design, casting size, and casting complexity. By considering these factors during the casting process, manufacturers can produce high-quality castings that meet the desired tolerances.

Tolerance Standards and Measurement Methods

International Tolerance Standards

When it comes to casting tolerances, there are several international standards that manufacturers follow. These standards define the allowable variations in dimensions, shape, and surface quality for cast parts. Some of the commonly used international tolerance standards include:

• ISO 8062: This standard specifies the general tolerances for castings made by various processes, including sand casting, investment casting, and die casting.
• ASTM E505: This standard provides a guide for specifying and evaluating the surface quality of metallic and nonmetallic castings produced by various casting processes.
• DIN 1688: This standard specifies the dimensional tolerances for cast parts made by sand casting, investment casting, and die casting.

Manufacturers must ensure that their cast parts meet the specified tolerance limits to ensure that they function as intended and meet the customer’s requirements.

Tolerance Measurement Methods

To measure the tolerances of cast parts, manufacturers use various measurement methods, including:

• Coordinate Measuring Machines (CMMs): CMMs use a probe to measure the dimensions of a part and compare them with the specified tolerances.
• Optical Measuring Machines (OMMs): OMMs use cameras and lasers to measure the dimensions and surface quality of a part.
• Gauge Blocks: Gauge blocks are precision tools used to measure the dimensions of a part by comparing them to a set of known dimensions.

Manufacturers must choose the appropriate measurement method based on the part’s complexity, size, and the required accuracy.

In conclusion, adherence to international tolerance standards and the use of appropriate measurement methods are critical to ensuring that cast parts meet the required specifications and function as intended.

Geometric Tolerances

Geometric tolerancing is normally applied to the following features of investment casting: Flatness, Straightness, Parallelism, Roundness, Hole Tolerance, Curved Holes, Internal Radii and Fillets, and so on.

Flatness

Flatness tolerance is the total deviation accepted from a flat plane. The investment cast part’s surface must lie between the most flat plane and the plane which will affect the maximum deviation permitted.

The amount of volumetric shrinkage that the wax and metal undergo during cooling will always determine the the degree of flatness of investment castings. This shrinkage is usually in the center of the mass and is referred to as “dish”. This dish can be controlled by specialized techniques, but will always be present to some extent. Due to different configuration and alloys of investment castings, general flatness tolerances cannot be quoted.

Straightness

People are always confused at the differences between straightness and flatness, as it seems so close. When it refers to the tolerance of straightness, the maximum tolerable diameter of the part’s divergence from a perfectly straight line will determine the straightness.

Straightness may be a real problem for some types of investment castings. As it is easy to bend for some relatively thin, short parts. Acacording to our casting experience,we may check if a designed part may bend, but it is difficult to say the bending extent before production. As a rough guide, constant sections tend to experience an axial bow of approximately 0.024 inches per foot.

Parallelism

When you see a blueprint includes parallel prongs supported only at one end, it means a particular challenge for the completion of precise investment casting. Once there is parallelism requirement for your part, our engineer in CFS foundry will discuss this issue with you prior to production.

It is difficult to maintain parallelism of these prongs because of volumetric shrinkage of the supporting structure. Yoke holes can also deform substantially as they reach ambient temperature. Careful design adjustment for volumetric shrinkage is critical to achieving an accurate part. These work pieces benefit from more extensive tooling and finishing.

Roundness

The radial difference between a true circle and a given circumference will define the roundness. We can test the roundness by reading the total indicator after rotating the part 360°. Another way to check the roundness is to take half the difference between the maximum and minimum condition. The latter method is recommended as it takes less time and is more efficient .

We measure the roundness by the difference between minimum and maximum radii of a circular part. Our inspection process will strictly control the roundness of a part, and will pick out the parts that falls outside given tolerances.

Concentricity

Concentricity is checked by two cylindrical surfaces sharing a common point or axis as their center. The extent of eccentricity is determined by the dimensional difference in the location of one center with respect to the other. The center of a bore to the outside diameter of a part will be concentric within .003″ for each 1/2″ of wall thickness.

Hole Tolerance

Hole tolerance is the necessary roundness of a cast hole. The surrounding metal of the hole must be symmetrical to provide proper fit and/or clearance. This is extremely important for cast parts which fit together, like wheel shafts, to ensure it will fit tightly without vibration. Longer holes can experience more internal concavity, such that the interior hole diameter is greater than that of the openings. We need to care more to meet specified hole tolerances.

Hole tolerance will be benefit for interior shrinkage, and for diameter up to 1/2 inch, hole clearance could be within +/- .003”, which provides an accurate shape and fit.

Curved Holes, Internal Radii and Fillets

Preformed ceramic cores or a soluble wax can creat curved holes. The normal hole tolerance will be doubled to take the curvature into account and all dimensions’ tolerance will be multiplied by two. We cannot size these holes so we provide a diameter tolerance of +/- .005.” For internal radii and fillets, as it is hard to control and inspect, when designed, they should be as wide as possible.

Investment Casting Tolerances in Hengke Metal

Hengke Metal can offer investment castings with superior tolerances, and confirm each provided cast components within permitted tolerance ranges. We are always follow strict tolerance standards so that all investment castings from m our foundry are accurate and try our best to avoid or reduce further machining, thus to save costs for our customers. Our business core is to deliver high quality metal castings with most accurate dimensions.

Even if your given tolerances are not available after casting, our machining capability will help to meet the required effect. Contact our investment casting foundry, and we will discuss in detail the tolerance issue for your part.
